Can a customer choose a blade by board and machine?

Yes. The PCD saw blade selector returns the full specification from the machine and the board, each line with its published reason.

Will it stop a blade that cannot be made?

The design module checks kerf against plate, bore against diameter and the tooth pitch. The margins are examples you confirm.

Can we erode tips and machine bodies here too?

Yes. The Wire EDM machine module erodes tips from PCD discs, and the CNC milling machine module makes bodies from billet.

How many times can a PCD tool be re-tipped?

That is your rule. Each tool keeps its tip count and service history, and at its lifetime cap it needs an engineer's override.

Woodworking tooling and PCD software

New tools set out and priced tooth by tooth, and every returning tool known by its history.

Blades are matched by board and machine.
PCD blades and cutters are set out tooth by tooth, priced and drawn.
A blade that cannot be made is stopped before it is quoted.
Every returning tool keeps its tip count and service history under its own code.

From the live engine

Real requests

TCT blades for a beam saw
3 off 250mm 80 tooth TCT saw blade. These are for cutting melamine faced chipboard on the beam saw.
The board sets a TCG tooth form as a recommendation, without asking.
A PCD blade to drawing
1 off custom tipped circular saw blade, PCD, 300mm diameter, 30mm bore, 72 teeth, TCG tooth form, 2.6mm plate.
Set out tooth by tooth against kerf, bore and pitch rules; tips, discs and body priced.
Tipped blades back for re-tipping
4 off 300mm 96T carbide tipped circular saw blade, re-tip and re-sharpen, TCG tooth form
Each blade under its own code; retipping timed per tooth replaced, with the service count kept.

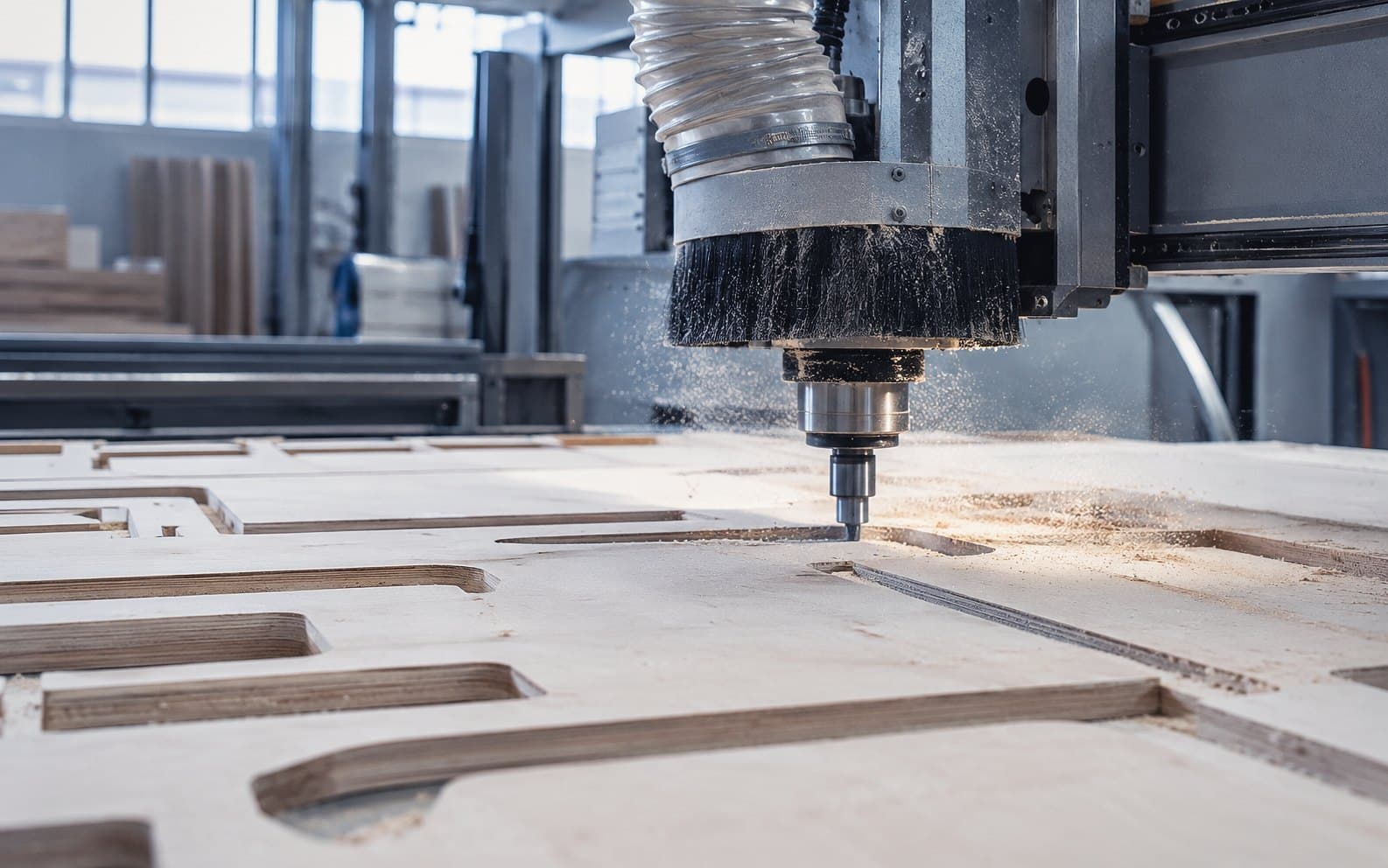

A CNC nesting router cutting parts from a plywood sheet under a dust extraction hood

See it work

The blade chosen by board and machine
Customers answer on your own site.
See the blade selector
The PCD saw blade selector in 3D, as the platform draws its answer for 19 mm board, chipboard and MDF, nesting CNC saw unit: ⌀ 300 mm, TCG. The gauges with it are the engine's answer for the same run. Nesting machine. The board is held on the vacuum bed and the saw aggregate on the gantry brings the blade down from above, running the cut just into the spoilboard. A C axis indexes the aggregate so it can saw in X and in Y.
From the live engine
Rules stop blades you cannot make
A kerf the plate cannot carry is refused.
A PCD saw blade, checked by its own rules
A PCD saw blade checked by its design module's own rules: a starting set nothing blocks, then one change a rule refuses.
Kerf: 3.6 mm. A rule blocks it.
From the live engine

Products that apply

Not for: Insert cutter heads and TCT blades made to order: the blade design module is PCD only.

Proof you can check

Funding in England can cover up to half a manufacturer's digital project.How funding works

Send us one job

Send one PCD tool you quoted, drawing and all, and see it set out and priced.

Setup included until 31 December.

Send us one job

Or start free, no card.

Presets for this trade

How presets work

Settings, Presets

What it sets up

3 design modules

PCD saw blades
Diamond tipped circular blades built tooth by tooth, with the discs, brazes and body blank priced.
Produces body blank dxf, tip and disc schedule, spec sheet, step
PCD cutters
Profile and jointing cutters on machined bodies, with the knife form drawn or imported and the erosion priced.
Produces knife form dxf, knife and disc schedule, spec sheet, step
PCD shank tools
PCD tipped routers, end mills, drills and reamers, with the tips nested on your discs and the bar matched from your stock.
Produces customer drawing, nest dxf, cutting list, spec sheet, step

2 machine interfaces

Wire EDM
Cut PCD tip and knife blanks from discs and erode finished profiles: parts, orders, an erode queue with modelled cut times, and the discs tracked as stock.
Runs on a screen at the machine. Wire EDM erosion
CNC Milling
Machine cutter bodies and similar parts from billet: parts with modelled cycle times from standard machining theory, orders, a run queue and the billet stock tracked.
Runs on a screen at the machine. CNC milling, 3 plus 2 capable

2 machines

Wire EDM 1
A station for the Wire EDM screen at the machine.
Switched off until you issue it a device key under Organisation, Stations
CNC mill 1
A station for the CNC Milling screen at the machine.
Switched off until you issue it a device key under Organisation, Stations

3 product schemas

PCD-tipped round tools
Circular saw blades (PCD and TCT)
PCD profile and jointing cutters

Wizard

PCD saw blade selector
From the machine, the board and what you know of the spindle, the full blade specification: tip material, diameter and bore, kerf and plate, tooth count and form, hook angle and running conditions, every line with its published why, matched to your catalogue or handed straight into the PCD saw blade design module.

Not this preset: The re-tipping work itself. PCD re-tip and regrind covers that.

The machine interface arrives switched on and empty. It creates no machine and no stock: you set the shop up in Machinist, and your plan's machine screens are unchanged by this.

Needs Sales Engineer, Design Engineer, Machinist and Wizard.

What it sets up

Design module

PCD saw blades
Diamond tipped circular blades built tooth by tooth, with the discs, brazes and body blank priced.
Produces body blank dxf, tip and disc schedule, spec sheet, step

4 product schemas

Bandsaw blades
Circular saw blades
Circular saw blades (PCD and TCT)
HSS cold saw blades

2 wizards

Bandsaw blade wizard
Material, section and machine in; the correct blade specification out, matched against your own catalogue.
PCD saw blade selector
From the machine, the board and what you know of the spindle, the full blade specification: tip material, diameter and bore, kerf and plate, tooth count and form, hook angle and running conditions, every line with its published why, matched to your catalogue or handed straight into the PCD saw blade design module.

Not this preset: Resharpening blades that come back. Saw sharpening and retipping covers that.

Needs Sales Engineer, Design Engineer and Wizard.

What it sets up

2 services

Saw blade sharpening and retipping
Cold saw resharpening and re-segmenting

3 customer fields

Collection address
Where items are collected from when it is not the billing address.
Collection day
Choice of 6: Monday, Tuesday, Wednesday and more
Return carrier account
The customer's own carrier account, where returns go on their number.

Not this preset: Selling new blades. Saw blades covers that, and the two work together.

Services arrive switched off, because the figures in them are illustrative starting points. Open each one, set your rates, then switch it on.

Needs Service Centre.

What it sets up

Service

PCD tool re-tip and regrind

3 customer fields

Collection address
Where items are collected from when it is not the billing address.
Collection day
Choice of 6: Monday, Tuesday, Wednesday and more
Return carrier account
The customer's own carrier account, where returns go on their number.

Not this preset: Selling new PCD tooling. PCD and diamond tooling covers that.

Services arrive switched off, because the figures in them are illustrative starting points. Open each one, set your rates, then switch it on.

Needs Service Centre.

PCD and diamond tooling is on

From the live engine

What each preset installs

PCD and diamond tooling
- PCD saw blade design module
- PCD profile cutter design module
- PCD saw blade selector
- Wire EDM and CNC milling machine modules
Saw blades
- Four blade schemas
- Bandsaw blade wizard
- PCD saw blade selector
- PCD saw blade design module
Saw sharpening and retipping
- Saw blade sharpening and retipping
- Cold saw resharpening and re-segmenting
- Saw sharpening service model
PCD re-tip and regrind
- PCD tool re-tip and regrind
- PCD retipping service model
